Life Cycle of Plasmo CSUI

Plasmo's CSUI orchestrates a lifecycle dedicated to mounting and unmounting your React, Vue, or Svelte components in a content script. Although each UI library/framework has a slightly different mounting API, the top-level lifecycle is largely the same:

1. Get an Anchor
2. Create or locate a Root Container
3. Render the component onto the Root Container

Terminologies

Anchor

A Plasmo CSUI anchor is defined by the following type:

export type PlasmoCSUIAnchor = {
  type: "overlay" | "inline"
  element: Element
}

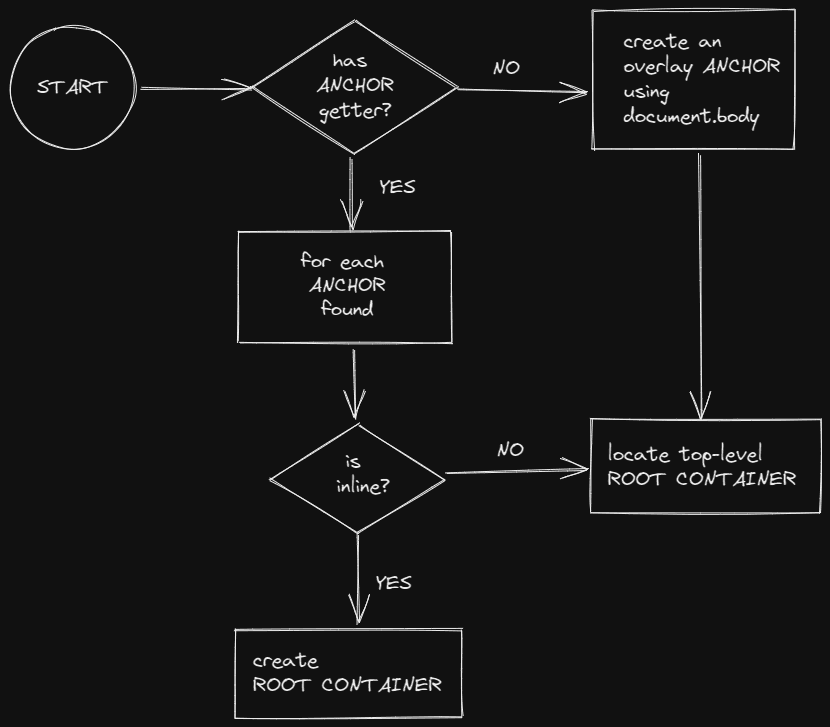

By default, the CSUI lifecycle creates an overlay anchor using the document.body element:

{
  type: "overlay",
  element: document.body
}

If any anchor-getter function is defined and exported, the CSUI lifecycle will use the returned element and the relevant anchor type instead. Since the anchor-getter functions can be async, you also have the power to control when Plasmo mounts your component. For example, you can wait for a specific element to appear on the page before mounting your component.

The anchor is passed down to the CSUI via the anchor props. You can access it as follow:

import type { PlasmoCSUIProps } from "plasmo"

const AnchorTypePrinter: FC<PlasmoCSUIProps> = ({ anchor }) => {
  return <span>{anchor.type}</span>
}

export default AnchorTypePrinter

Overlay

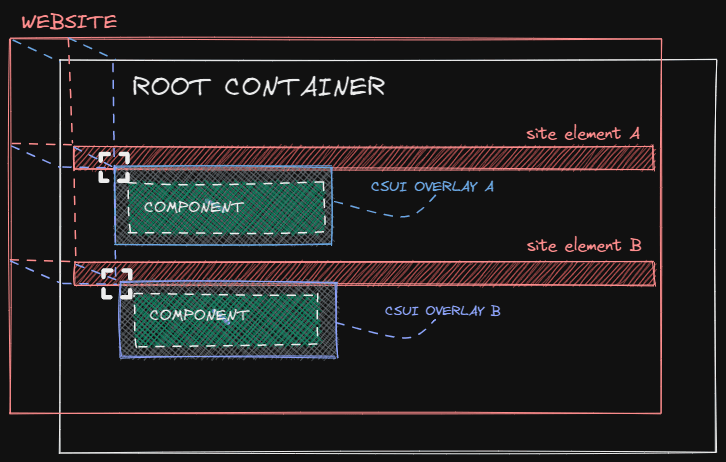

Overlay anchors spawn CSUI Overlay Containers which are batch-mounted onto a single Root Container element per CSUI. The Overlay Containers are absolutely positioned relative to each anchor's element with maxed out z-index. Then, your exported CSUI Component is mounted onto each Overlay Container:

To specify a single overlay anchor, export a getOverlayAnchor function:

import type { PlasmoGetOverlayAnchor } from "plasmo"

export const getOverlayAnchor: PlasmoGetOverlayAnchor = async () =>
  document.querySelector("#pricing")

To specify a list of overlay anchors, export a getOverlayAnchorList function:

import type { PlasmoGetOverlayAnchorList } from "plasmo"

export const getOverlayAnchorList: PlasmoGetOverlayAnchorList = async () =>
  document.querySelectorAll("a")

Update Position

The default Overlay Container listens to the window scroll event to align itself with the anchor element. You can customize how the Overlay Container refreshes its absolute positioning by exporting a watchOverlayAnchor function. The example below refreshes the position every 8472ms:

import type { PlasmoWatchOverlayAnchor } from "plasmo"

export const watchOverlayAnchor: PlasmoWatchOverlayAnchor = (
  updatePosition
) => {
  const interval = setInterval(() => {
    updatePosition()
  }, 8472)

  // Clear the interval when unmounted
  return () => {
    clearInterval(interval)
  }
}

Check with-content-scripts-ui/contents/plasmo-mount.tsx (opens in a new tab) for an example.

Inline

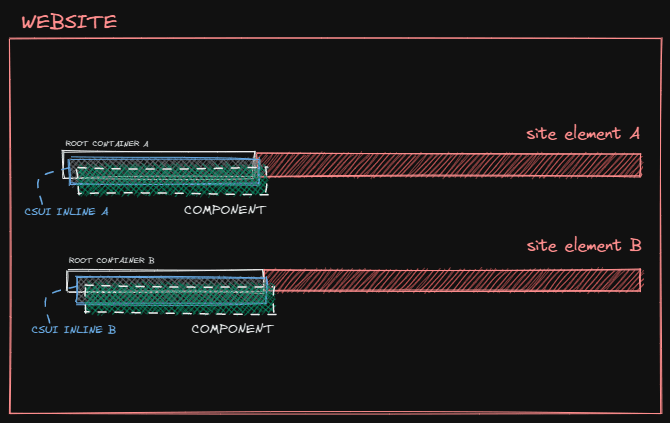

Inline anchor embeds your CSUI Component directly into the web page. Each anchor spawns a Root Container appended next to its target element. Within each Root Container, an Inline Container is created which is then used to mount the exported CSUI Component:

To specify a single inline anchor, export a getInlineAnchor function:

import type { PlasmoGetInlineAnchor } from "plasmo"

export const getInlineAnchor: PlasmoGetInlineAnchor = async () =>
  document.querySelector("#pricing")

To specify a list of inline anchors, export a getInlineAnchorList function:

import type { PlasmoGetInlineAnchorList } from "plasmo"

export const getInlineAnchorList: PlasmoGetInlineAnchorList = async () =>
  document.querySelectorAll("a")

Check with-content-scripts-ui/contents/plasmo-inline.tsx (opens in a new tab) for an example.

Root Container

The Root Container is where your CSUI Component is mounted. The built-in Root Container is a ShadowDOM element with the plasmo-csui custom tag. This allows you to style the Root Container and their exported components without being impacted by the web page's styles.

Custom DOM Mounting

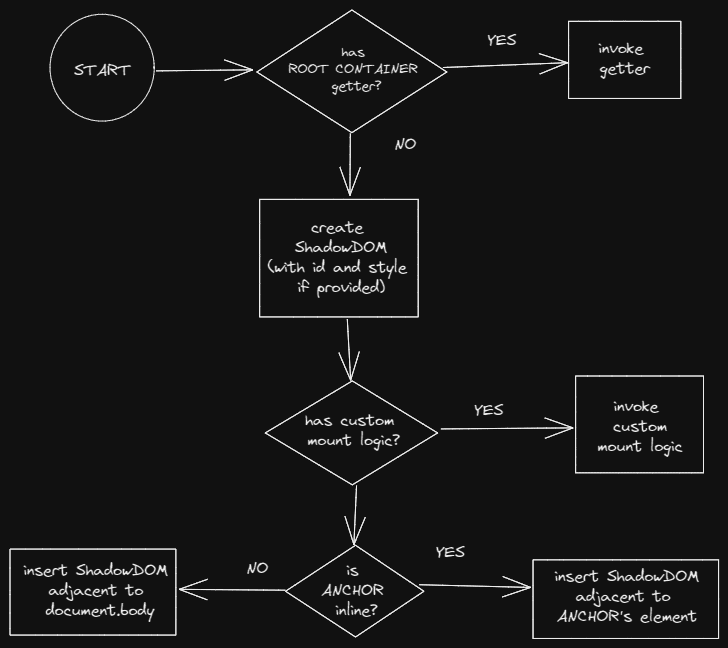

The Root Container creates a shadowHost which gets injected into the web page's DOM tree. By default, Plasmo injects the shadowHost after the element for an inline anchor, and before the document.body for an overlay anchor. To customize this behavior, export a mountShadowHost function:

import type { PlasmoMountShadowHost } from "plasmo"

export const mountShadowHost: PlasmoMountShadowHost = ({
  shadowHost,
  anchor,
  observer
}) => {
  anchor.element.appendChild(shadowHost)
  observer.disconnect() // OPTIONAL DEMO: stop the observer as needed
}

Closed Shadow Root

By default, the shadow root is "open," allowing anyone (developer and extension user) to inspect the hierarchy of the ShadowDOM. To override this behavior, export a createShadowRoot function:

import type { PlasmoCreateShadowRoot } from "plasmo"

export const createShadowRoot: PlasmoCreateShadowRoot = (shadowHost) =>
  shadowHost.attachShadow({ mode: "closed" })

Custom Styles

The built-in ShadowDOM provides a convenient mechanism for extension developers to safely style their components by exporting a getStyle function that returns an HTML style element (opens in a new tab).

For further guidance on styling CSUI, please read Styling Plasmo CSUI.

Custom Root Container

Sometimes, you'll want to completely replace Plasmo's Shadow DOM container implementation to fit your needs. For example, you might want to piggyback on an element within the web page itself instead of creating a new DOM element. To do so, export a getRootContainer function:

import type { PlasmoGetRootContainer } from "plasmo"

export const getRootContainer = () => document.getElementById("itero")

Some reasons you'd want to do this:

• The extension needs to absorb the styling of the host webpage (opens in a new tab)
• The extension needs to mount the component directly into the webpage instead of using a shadow DOM
• The extension needs to use an iframe (opens in a new tab), instead

Check with-content-scripts-ui (opens in a new tab) for an example.

Renderer

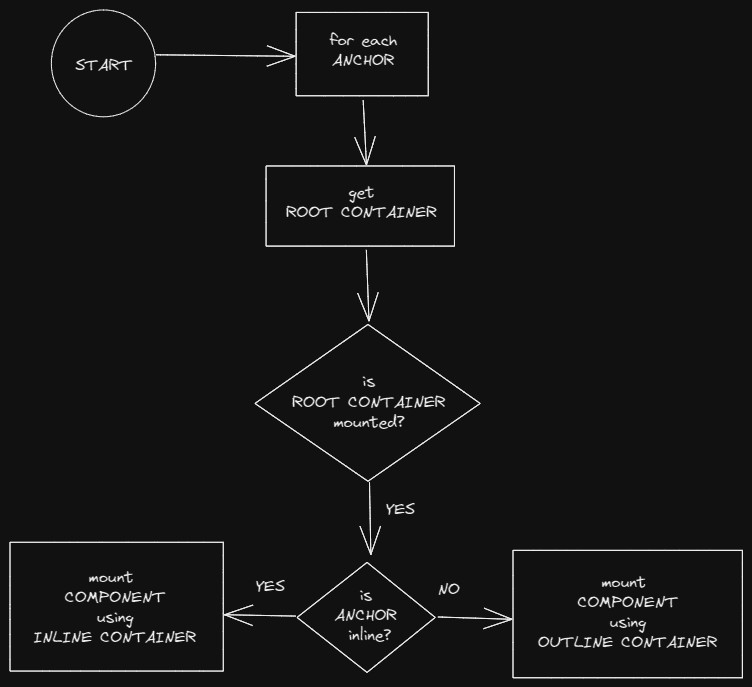

The Renderer is in charge of observing the website's DOM to detect the presence of each Root Container and tracking the linking between each anchor's element and its Root Container. Once a stable Root Container is determined, the Renderer mounts the exported CSUI Component into the Root Container using either an Inline Container or an Overlay Container, depending on the type of the Anchor.

Detecting and Optimizing Root Container Removal

When a webpage changes its DOM structure, the Root Container might be removed. For example, given an email client filled with inbox items, and a CSUI injected inline next to each item. When an item is deleted, the root container will be removed as well.

To detect Root Container removal, the CSUI Renderer compares each mounted container's root against the window.document object. This check can be optimized to O(1) by exporting a getShadowHostId function:

import type { PlasmoGetShadowHostId } from "plasmo"

export const getShadowHostId: PlasmoGetShadowHostId = () => `adonais`

The function also allows developers to customize the id for each anchor found:

import type { PlasmoGetShadowHostId } from "plasmo"

export const getShadowHostId: PlasmoGetShadowHostId = ({ element }) =>
  element.getAttribute("data-custom-id") + `-pollax-iv`

Custom Renderer

Developers may export a render function to override the default renderer. You might need this ability to:

• Provide a custom Inline container or Overlay container
• Customize the mounting logic
• Provide a custom MutationObserver

For example, to use a custom container:

import type { PlasmoRender } from "plasmo"

import { CustomContainer } from "~components/custom-container"

const EngageOverlay = () => <span>ENGAGE</span>

export const render: PlasmoRender = async ({
  anchor, // the observed anchor, OR document.body.
  createRootContainer // This creates the default root container
}) => {
  const rootContainer = await createRootContainer()

  const root = createRoot(rootContainer) // Any root
  root.render(
    <CustomContainer>
      <EngageOverlay />
    </CustomContainer>
  )
}

To utilize the built-in Inline Container or Overlay Container:

import type { PlasmoRender } from "plasmo"

const AnchorOverlay = ({ anchor }) => <span>{anchor.innerText}</span>

export const render: PlasmoRender = async (
  {
    anchor, // the observed anchor, OR document.body.
    createRootContainer // This creates the default root container
  },
  _,
  OverlayCSUIContainer
) => {
  const rootContainer = await createRootContainer()

  const root = createRoot(rootContainer) // Any root
  root.render(
    // You must pass down an anchor to mount the default container. Here we pass the default one
    <OverlayCSUIContainer anchor={anchor}>
      <AnchorOverlay anchor={anchor} />
    </OverlayCSUIContainer>
  )
}

If you need to customize the MutationObserver, do not export an anchor-getter function. Otherwise, the built-in MutationObserver will still be spawned.
